DeFi Wrapper Technical Design and Architecture

1. Abstract

The DeFi Wrapper turns a single stVault into a multi-user product. An stVault on its own has one owner; the Wrapper puts a tokenized pool in front of it, so many depositors can share one vault, hold a transferable claim on it, mint stETH against their own share, and route that stETH into a DeFi strategy — without any of them holding vault permissions.

2. Design

2.1 Goals

• Pool one stVault across many depositors while keeping each depositor's position individually accounted.
• Keep stETH minting per-account. A depositor's debt is their own: it limits their own withdrawals and can be rebalanced away without touching anyone else's position.
• Make the operator's discretion bounded. The Node Operator decides when to return ETH from validators, but not at what rate a request settles.
• Deploy without a trusted setup step. Until control passes to the timelock, the pool's admin is the factory itself, fixed code rather than a person.

2.2 Principles

• No individual holds an stVault role that moves funds. Those roles go to the pool and the queue as contracts, with admin on the timelock.
• Losses are shared, gains are not. A withdrawal request settles at the lower of its creation rate and the finalization rate, so waiting in the queue cannot be used to capture rewards, and cannot be used to escape penalties.
• Degrade automatically, recover deliberately. Bad debt, unassigned liability and stale reports block operations without anyone acting; unpausing after an incident requires the timelock.
• Stay inside Lido Core's guarantees. The Wrapper never re-implements vault accounting; it reads maxLockableValue, liabilityShares and report freshness from the Dashboard and VaultHub.

2.3 Product configurations

A deployment is one of three shapes, decided by poolType at deploy time and immutable afterwards:

Configuration	Pool type	Minting	Strategy	Allowlist
Pooled staking	StvPool	no	no	optional
Pooled staking with liquidity	StvStETHPool	yes	no	optional
Pooled staking with a DeFi strategy	StvStrategyPool	yes	required	required

Only two of these are contracts. A strategy pool is StvStETHPool carrying the StvStrategyPool type tag, with a strategy proxy in its allowlist — which is why an existing minting pool can be upgraded into one in place, and why everything in §3.3 applies to it.

2.4 Lido fee socialization and economic consequences

Nothing stops a minting pool from holding both depositors who mint stETH and depositors who only stake — minting is per account, and neither the pool nor the stVault rejects the mix. It is left unsupported because of how the cost lands.

The liquidity and reservation fees are charged on the stVault as a whole. They raise its cumulative Lido fees, which lowers maxLockableValue, which lowers totalAssets() — so the price of every stv drops, including that of holders who never minted. LazyOracle reports for the stVault, not per account, so there is no way to bill those fees back to the accounts that caused them.

The result is a silent subsidy from stakers to minters, which is why the recommended shape is one pool per behaviour.

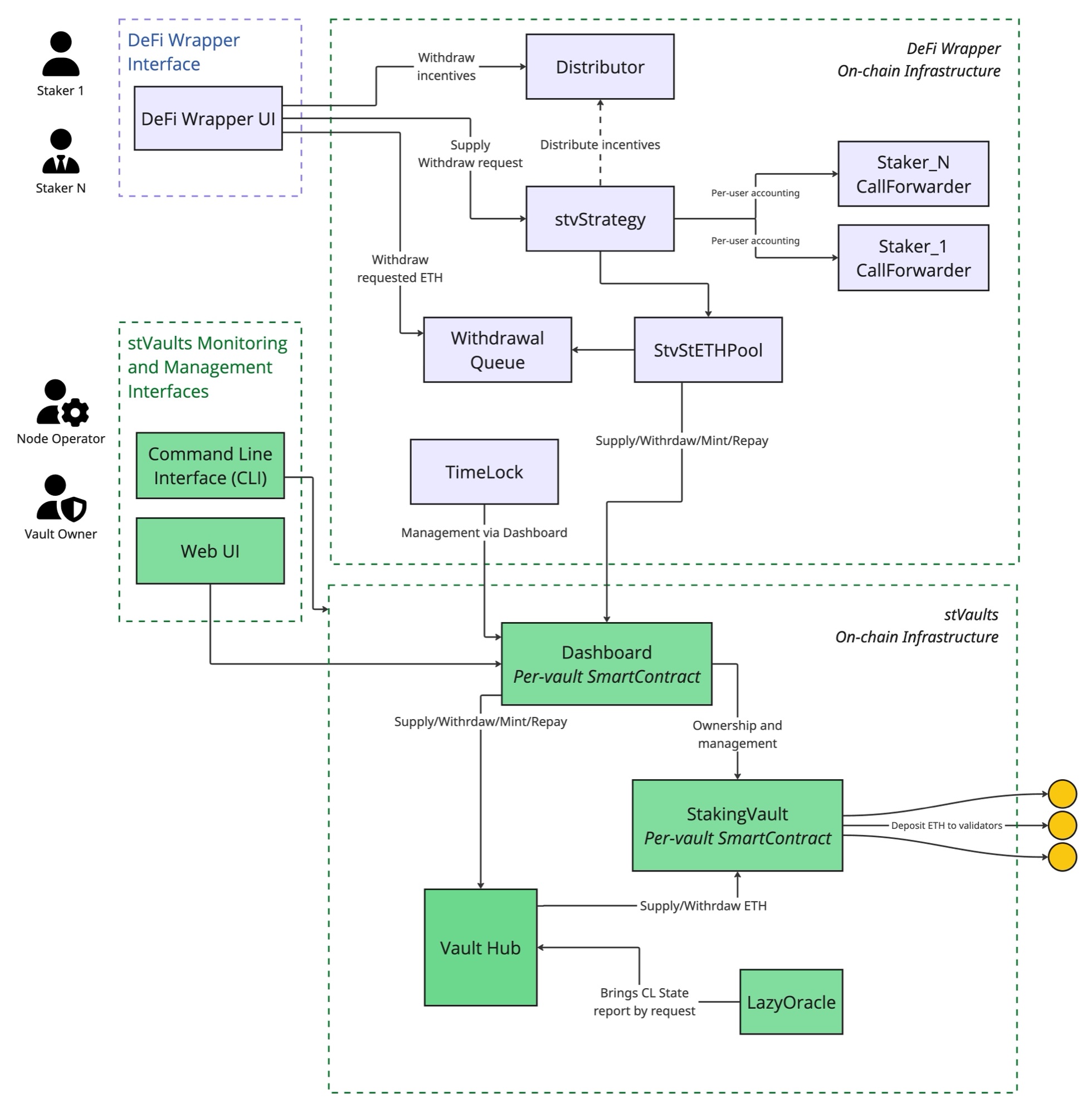

3. Architecture

3.1 Component map

A deployment consists of seven contracts, of which the first four are the Wrapper proper:

Contract	Role
StvPool / StvStETHPool	the pool: ERC-20 stv accounting, deposits, per-account minting
WithdrawalQueue	request, finalize and claim lifecycle for exits
Distributor	Merkle-based distribution of external rewards
Strategy (optional)	adapter routing minted wstETH into an external protocol
TimelockController	governance: holds DEFAULT_ADMIN_ROLE everywhere
StakingVault + Dashboard	the underlying stVault, from Lido Core

The pool never holds vault ownership. The factory grants FUND_ROLE, REBALANCE_ROLE and, for minting pools, MINT_ROLE and BURN_ROLE on the Dashboard to the pool, and WITHDRAW_ROLE to the queue. DEFAULT_ADMIN_ROLE on the Dashboard goes to the timelock, and the factory revokes itself in the same transaction.

3.2 StvPool

The base pool. It accepts ETH, forwards it into the stVault through Dashboard.fund(), and issues stv — a transferable ERC-20 claim on the stVault's value.

info

stv stands for staking vault token — the pool's own share token.

stv accounting

stv has 27 decimals while the underlying asset has 18. The pool is initialized by minting vaultBalance × 1e9 stv to itself for the connect deposit already sitting in the stVault, which fixes the starting rate at 1 ETH = 1e27 stv and keeps later conversions exact.

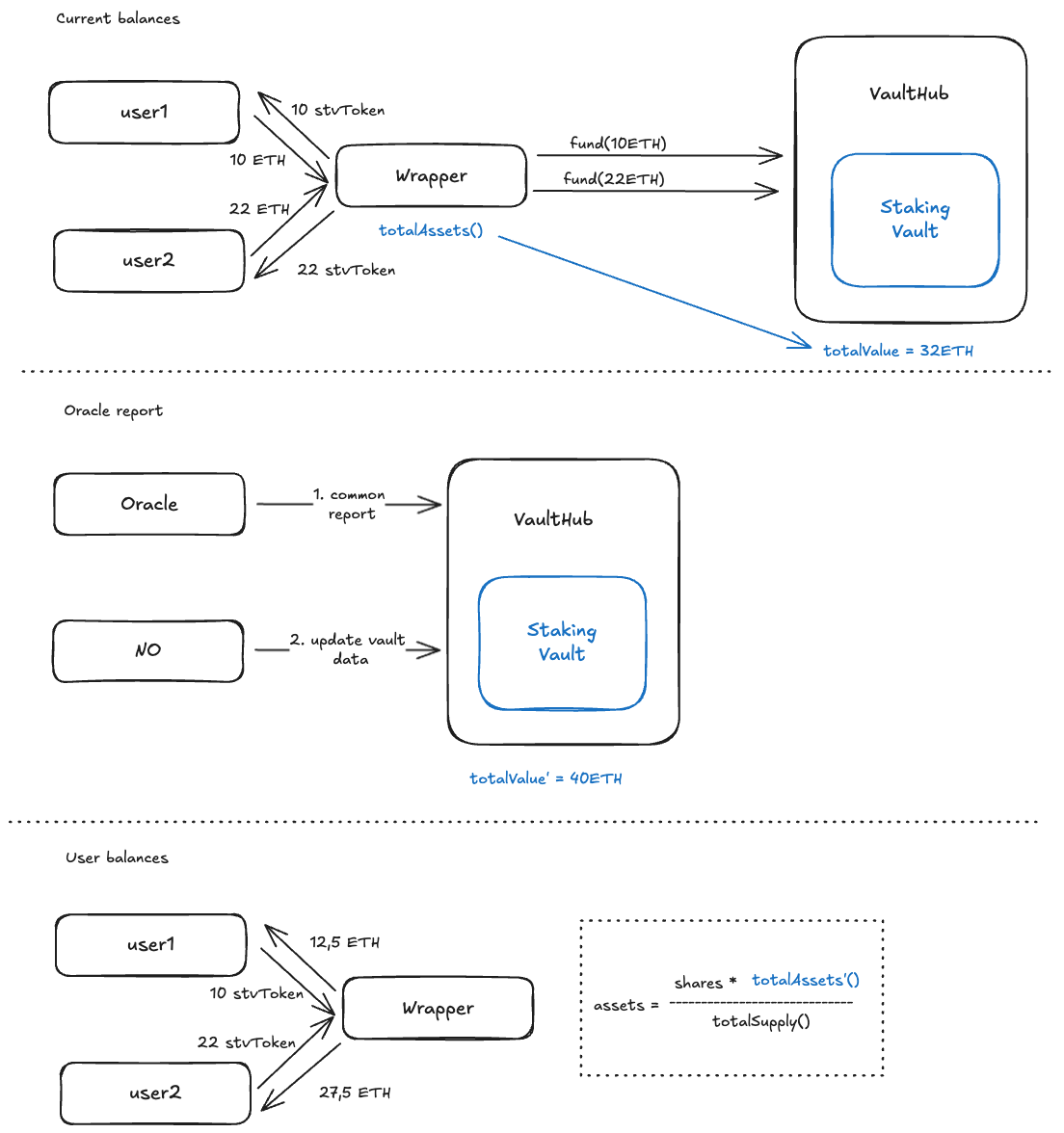

The value backing the token is read from Lido Core, not tracked locally:

$$\text{totalNominalAssets} = \texttt{Dashboard.maxLockableValue()}$$ $$\text{totalAssets} = \text{totalNominalAssets} - \text{unassignedLiabilitySteth}$$

Conversions round in the direction that protects the pool: previewDeposit floors the stv minted, previewWithdraw ceils the stv burned, previewRedeem floors the assets returned.

Unassigned liability and bad debt

Two conditions can arise that make the pool's own accounting untrustworthy, and both freeze it:

• Unassigned liability — the stVault owes stETH that no pool account is recorded as owing, measured as the excess of vault liability over the pool's recorded minted shares. It arises through bad debt socialization: the DAO can move uncovered liability from one vault onto another run by the same Node Operator, and if the pool's vault is the acceptor, its liability grows while nobody in the pool has minted anything.
• Bad debt — the stVault owes more stETH than it is worth, so there is no longer enough value behind stv to price it. This is not a normal state: losses have to exceed the reserve entirely, which takes an exceptional event such as mass slashing, not a dip in validator performance. Rebalancing cannot fix it; the Lido Core escalation path can.

Both are checked inside the ERC-20 _update hook, so while either holds, every transfer, mint and burn of stv reverts — deposits included. No role is involved and nobody can override it; the condition has to be cleared.

Unassigned liability can be cleared permissionlessly, by anyone, in two ways:

function rebalanceUnassignedLiability(uint256 _stethShares) external;
function rebalanceUnassignedLiabilityWithEther() external payable;

The first repays it out of the stVault's own assets, the second out of ETH the caller supplies. Neither can repay more than the unassigned amount, or the call reverts with NotEnoughToRebalance. That cap matters because both spend the stVault's assets, which belong to every stv holder: without it, anyone could clear one account's personal debt at everyone else's expense.

Deposits

function depositETH(address _recipient, address _referral) public payable returns (uint256 stv);
receive() external payable;   // auto-deposits to msg.sender

Each deposit checks, in order: non-zero value, non-zero recipient, deposits not paused, allowlist membership, and report freshness. Freshness is required because stv is priced from the last report; without it a depositor could be issued stv at a stale rate. See Apply oracle reports.

The allowlist is implemented as a role, not a mapping: membership is DEPOSIT_ROLE, whose admin is ALLOW_LIST_MANAGER_ROLE. Whether the allowlist is enforced at all is fixed in the constructor and cannot be toggled later — changing it means upgrading to a new implementation.

3.3 StvStETHPool

Adds per-account stETH minting on top of StvPool. Each account has its own debt, its own collateral requirement and its own forced rebalancing.

The reserve ratio gap

The pool does not mint up to the stVault's own reserve ratio. It keeps a margin:

$$RR_{\text{pool}} = RR_{\text{vault}} + \text{gap} \qquad FRT_{\text{pool}} = FRT_{\text{vault}} + \text{gap}$$

The gap is immutable per deployment and is 250 BP (2.5%) in every shipped configuration. It exists so that the pool can force-rebalance an account before the vault becomes subject to forced rebalancing by the protocol — the pool always hits its own threshold first.

Both results are capped just below 100%: a reserve ratio of exactly 100% would leave nothing to mint against and would divide by zero in the collateral formulas, and the threshold is capped one basis point lower still so that it stays under the reserve ratio. Neither cap binds in practice, since the highest vault reserve ratio is the Default tier's 50%.

The pool keeps its own copy of both numbers rather than reading them from the stVault on each call, so a tier change in Lido Core does not reach it by itself: until someone calls syncVaultParameters(), minting capacity and the rebalancing threshold still follow the old tier. The call is permissionless, so anyone can bring them up to date.

Per-account collateral

Every position is measured on its own: the assets an account's stv is worth, $A$, against the stETH debt it has minted, $L$. The two pool ratios turn that pair into two amounts of assets:

$$\text{lock}(L) = \left\lceil \frac{L}{1 - RR_{\text{pool}}} \right\rceil \qquad \text{threshold}(L) = \left\lceil \frac{L}{1 - FRT_{\text{pool}}} \right\rceil$$

lock is what the account must keep to carry the debt it has. Read the other way round, it says how much the account may mint against what it holds:

$$\text{mintable}(A) = \left\lfloor A \times (1 - RR_{\text{pool}}) \right\rfloor$$

Rounding always runs against the account — mintable floors, lock ceils — so rounding can never leave a position short of collateral.

threshold is the same shape with the lower ratio, so it always sits below lock. Above it the account is healthy; below it anyone may force-rebalance it. The gap between the two is the room an account has to lose value before that happens, and it is thin for an account that mints to the limit.

lock is enforced on every transfer, not only at mint time: the _update hook rejects any move that would leave the account holding less stv than its own debt requires (InsufficientReservedBalance). That is on top of the pool-wide freezes described in §3.2.

Forced rebalancing

function forceRebalance(address _account) external returns (uint256 stvBurned);
function forceRebalanceAndSocializeLoss(address _account) external returns (uint256 stvBurned);

forceRebalance is permissionless — anyone may force-rebalance a breached account. It repays part of the debt out of the account's own stv, burning stv worth exactly what it extinguishes. Both sides of the position therefore shrink by the same amount $x$, and $x$ is chosen to land the account back on the reserve ratio:

$$\frac{L - x}{A_{\text{shares}} - x} = 1 - RR_{\text{pool}} \qquad\Longrightarrow\qquad x = \frac{L - (1 - RR_{\text{pool}}) \times A_{\text{shares}}}{RR_{\text{pool}}}$$

$x$ is the amount of stETH shares repaid, and $A_{\text{shares}}$ is the account's assets expressed in stETH shares. The account keeps whatever stv is left once that much has been burned.

If the account's stv does not cover its debt, the account is undercollateralized and forceRebalance refuses to act (UndercollateralizedAccount). Only forceRebalanceAndSocializeLoss can close such a position, it requires LOSS_SOCIALIZER_ROLE, and the shortfall is spread across every remaining pool participant. The amount that may be socialized in one call is capped by maxLossSocializationBP, which defaults to 0 — until the timelock raises it, socialization is impossible and an undercollateralized account cannot be closed at all.

Exceeding minted stETH

Two contracts count the same debt. The pool tracks what its accounts owe it, and the stVault tracks what it owes Lido Core. Normally the two agree; when they drift apart, the difference has a name in each direction:

• the stVault owes more than the pool has on record → unassigned liability, covered in §3.2;
• the pool has on record more than the stVault owes → exceeding minted stETH.

The second happens when the stVault's debt is repaid without the pool being involved — a rebalance performed on the stVault directly. The stVault spends its own ETH to burn stETH liability, so both its value and its liability fall, while every account in the pool still owes exactly what it owed before.

Those unchanged debts are worth something. The accounts owe stETH that the stVault no longer owes anyone, and that claim belongs to the pool, offsetting the ETH the rebalance consumed. So the pool can hold value in two forms at once, and totalAssets() picks the branch that applies:

exceeding > 0  →  totalAssets = nominalAssets + exceedingMintedSteth
otherwise      →  totalAssets = nominalAssets − unassignedLiabilitySteth

Only one branch can ever be live, because the two quantities are the same difference measured in opposite directions.

An account can settle against that claim with rebalanceExceedingMintedStethShares: it burns its own stv, its debt drops, and no vault-level rebalance is needed — the stVault's liability is already lower. The catch is that the exceeding amount is one pool-wide budget served first come, first served. The contract's NatSpec flags the front-running risk outright, and whoever loses the race gets InsufficientExceedingShares.

3.4 WithdrawalQueue

Exits are a FIFO queue, because the ETH to satisfy them usually has to come back from the Consensus Layer first. The queue's job is to tell the operator how much is owed, and to settle each request at a rate that cannot be gamed in either direction.

The request

function requestWithdrawal(address _owner, uint256 _stvToWithdraw, uint256 _stethSharesToRebalance)
    external returns (uint256 requestId);

Requests are records, not tokens — the owner is fixed at creation and only they can claim. A request stores cumulative sums of stv, stETH shares and assets, which is what lets any range of requests be priced with two lookups.

A request is bounded at both ends, and the two bounds deliberately measure different things:

Constant	Value	Measured on	Reverts with
MIN_WITHDRAWAL_VALUE	0.001 ETH	what the request will actually pay out — the assets minus any debt it settles	RequestValueTooSmall
MAX_WITHDRAWAL_ASSETS	10,000 ETH	the gross assets the stv is worth, debt included	RequestAssetsTooLarge

A request that mostly repays debt is small as a payout but can still be large in gross size, so the floor keeps dust out of the queue while the ceiling keeps any one request from monopolizing the ETH coming back from validators.

Creating a request requires a fresh report, and moves the stv — plus the debt, when the request settles any — to the queue.

Finalization

function finalize(uint256 _maxRequests, address _gasCostCoverageRecipient) external returns (uint256);

FINALIZE_ROLE only, held by the Node Operator by default. The call walks the queue from the first unfinalized request and stops at the first request that fails any of four conditions:

1. claimable ETH exceeds the stVault's withdrawableValue;
2. claimable plus rebalanced ETH exceeds the stVault's availableBalance;
3. the minimum withdrawal delay has not elapsed since the request was created;
4. the request was created after the latest oracle report — at least one report must have landed in between.

The delay is immutable per deployment with a one-hour floor enforced in the constructor; every shipped configuration sets exactly one hour. Condition 4 is what makes the rate meaningful: a request must be priced against a report that already knows about it.

Everything finalized in one call shares a checkpoint recording the stv rate, the stETH share rate and the gas-cost coverage in force. Checkpoints accumulate in an append-only list, each one stamped with the first request it covers.

Claims are priced from them, so claiming starts by locating the right one: the last checkpoint whose first request number does not exceed yours. The list is ordered, so that is a binary search, and there are two ways to run it.

claimWithdrawal(recipient, requestId) does it on-chain, scanning the whole list at the claimer's expense. claimWithdrawalBatch instead takes the indices as an argument — the hint — which callers compute beforehand with the findCheckpointHint and findCheckpointHintBatch view functions, for free. The hint is never required, only cheaper, and it matters more the longer the pool has been finalizing requests.

The one-sided discount

At claim time the request's own creation rate is compared with its checkpoint rate:

requestStvRate = assetsToClaim × 1e36 / stv

if requestStvRate > checkpoint.stvRate:
    assetsToClaim = stv × checkpoint.stvRate / 1e36     // discounted

If the rate fell, the request is discounted — the queue absorbs its share of the loss. If the rate rose, nothing happens and the request still settles at its creation amount. Rewards earned while a request sat in the queue stay with the depositors who are still in the pool, which is correct: the exiting depositor's validators were being exited, not earning.

The operator cannot set the rate. What they do choose is when to finalize and whether to batch, and batching socializes rewards across the batch rather than letting earlier requests capture them.

What a claim pays out

A request can carry stETH debt as well as stv, through stethSharesToRebalance. Finalization settles that debt out of the stVault and burns the stv that backed it, so only the remainder leaves as ETH:

payout = assets (discounted to the checkpoint rate, if the rate fell)
       − stethSharesToRebalance valued at the checkpoint share rate
       − gas cost coverage

Carrying 1000 ETH of stv with 900 stETH of debt into the queue therefore pays out around 100 ETH, not 1000. That is not a loss: the depositor minted those 900 stETH earlier and still holds them, so exiting nets the debt against the collateral, the way closing a loan returns equity rather than the gross position.

It is also why the minimum is measured on the value rather than the assets — a request that is mostly debt repayment still has to pay out something.

Gas cost coverage

Finalization is work the Node Operator pays for while the exiting depositors get the benefit, and a queue full of small requests makes that worse — the loop runs per request. So each request can carry a deduction that goes to whoever finalizes it.

The amount is set by FINALIZE_ROLE through setFinalizationGasCostCoverage, is 0 by default, and cannot exceed MAX_GAS_COST_COVERAGE, a constant of 0.0005 ETH per request. The ceiling is what stops an operator from turning the deduction into a toll on exits.

At finalization each request gives up min(payout, coverage) — a request worth less than the coverage surrenders what it has and never goes negative — and the total is withdrawn from the stVault alongside the claimable ETH and sent to the address passed to finalize, defaulting to the caller.

The rate in force is captured in the checkpoint, so an operator who changes it later does not re-price requests that were already finalized but not yet claimed.

The contract's own note gives both motives: a non-zero coverage compensates finalizers for gas, and it makes flooding the queue with dust requests cost the sender something.

Claiming

function claimWithdrawal(address _recipient, uint256 _requestId) external;
function claimWithdrawalBatch(address _recipient, uint256[] _requestIds, uint256[] _hints) external;

Only the request owner can claim, once, after finalization. Claiming is not pausable and keeps working after the stVault has been disconnected — once ETH is locked against a finalized request, nothing in the system can hold it back.

3.5 Strategies

A strategy pool routes each depositor's minted wstETH into an external protocol. One adapter comes out of the box: MellowStrategy, the Lido EarnETH connector, whose factory is the only strategy factory deployed on either network.

Any other protocol needs its own adapter. That means two contracts — one implementing IStrategy, and a factory implementing IStrategyFactory.deploy(pool, deployBytes) for Factory.createPoolFinish to call. The custom strategy guide walks through writing and deploying one.

Per-user accounting

Whichever adapter is used, the custody model is the same — it lives in StrategyCallForwarderRegistry, which every strategy inherits. Positions are not commingled. Each user gets their own StrategyCallForwarder — a minimal clone deployed at a CREATE2 address derived from the chain id, the strategy id, the strategy address and the user, so it is deterministic and unique per user per strategy.

The forwarder holds the stv, not the user. The user's claim is mediated by the strategy, and two rules keep that from being a hazard.

First, the forwarder answers to nobody but the strategy: doCall, sendValue and safeTransferERC20 on it are all onlyOwner, and the owner is the strategy contract, set when the clone is initialized. A user cannot drive their own forwarder directly.

Second, the strategy never takes a forwarder address as an argument. It derives one with _getOrCreateCallForwarder(msg.sender), and the CREATE2 salt makes that address a function of the caller. There is no input through which one user could reach another's forwarder.

Together they make the recovery helpers safe to leave open. safeTransferERC20 on the strategy carries no role check at all — anyone may call it, for any token, to any recipient — because the tokens it moves always come from the caller's own forwarder. Such helpers exist because balances collect there: refunds from the external protocol, ETH left over after a call.

Lido EarnETH specifics

EarnETH strategy talks to a Mellow vault through three queues: a synchronous deposit queue, an asynchronous one, and an asynchronous redeem queue. At least one deposit queue must be configured; the redeem queue is mandatory.

Entering picks a path with MellowSupplyParams{isSync, merkleProof}. The proof is Mellow's whitelist check, run against the user's forwarder — without it the supply is refused. The two paths differ in cost as much as in timing:

• Synchronous settles in the same transaction, and costs more for it: the price is cut by the queue's penalty and then by the Mellow vault's deposit fee. It also only works while Mellow's price report is younger than the queue's maxAge.
• Asynchronous records a request the user collects later with claimShares(), paying the deposit fee but no penalty. Only one request may be outstanding at a time — supplying again before claiming is rejected.

Either path is simulated by previewSupply first, and supply reverts with SupplyFailed() if that simulation fails: a paused queue, a stale or suspicious price, a missing whitelist entry all stop the deposit before any ETH moves.

Leaving is always asynchronous. requestExitByWsteth places a redeem on the redeem queue, and the position is collected later with finalizeRequestExit(requestId). The request id is bytes32(block.timestamp), so a user's exits made in the same block merge into one underlying request: expect more than one event carrying that id, and a single finalize settling the lot.

The constructor validates the queues against the Mellow vault before anything is deployed — each must belong to that vault, be of the right kind, and hold wstETH as its asset, with the synchronous one additionally named SyncDepositQueue. It also requires that the strategy itself has no pre-existing deposit or redeem request. A mismatch reverts with InvalidQueue, so an adapter cannot be pointed at a Mellow vault it does not fit.

3.6 Distributor

A standalone cumulative Merkle distributor for rewards that arrive as ERC-20 tokens — sidecar incentives from DVT providers, restaking points once they convert, residual value swept from a disconnected vault.

function addToken(address _token) external;                       // MANAGER_ROLE
function setMerkleRoot(bytes32 _root, string _cid) external;      // MANAGER_ROLE
function claim(address _recipient, address _token, uint256 _cumulativeAmount, bytes32[] _proof) external;

Accounting is cumulative: the leaf commits to a total, and a claim transfers the difference against what that recipient already took. A root can be set at most once per block and must actually change.

claim is permissionless — anyone may submit a proof on someone's behalf, and the tokens always go to the recipient named in the leaf. For strategy pools that recipient is the user's forwarder rather than the user, so the tokens reach the user only after safeTransferERC20 on the strategy.

How a distribution is built

The tree is assembled off-chain and published to IPFS — the contract stores only the root, the CID and lastProcessedBlock. Each leaf is (recipient, token, cumulativeAmount). How a recipient's share is computed depends on the mode the tree was built in: integral, the default, weights each holder by how long they held, while snapshot uses balances at the chosen block, after the operator's cut:

distributable = balance now − (balance at the previous root − claimed since)
share         = balanceOf(user) / (totalSupply − balanceOf(pool))    // snapshot mode

The pool's own stv, minted against the connect deposit, is excluded from the supply. MANAGER_ROLE — the Node Operator Manager by default — pushes the root. There is no schedule: a root can be submitted at any time, at most once per block, and has to differ from the current one.

warning

Only the current root can be proven against. Two consequences:

• under snapshot, a depositor who exits before the tree is built loses what they had accrued — the next tree omits their leaf, and the root it replaces is no longer accepted;
• recipients are discovered from Deposit events, so an account that received stv by transfer never enters the tree.

3.7 Factory and deployment

Deployment is two transactions, because the pool and the queue reference each other and neither can be constructed first.

Start deploys the timelock, both proxies pointed at a dummy implementation, the stVault and Dashboard, the queue implementation, the distributor and the pool implementation — then stores a hash of the entire configuration with a 24-hour deadline.

Finish connects the stVault to VaultHub (requiring CONNECT_DEPOSIT as msg.value), upgrades and initializes both proxies, deploys and allowlists the strategy, grants every role, and hands admin to the timelock.

The commitment hash binds the caller and every configuration field. A different sender, a mutated parameter or a missed deadline all make the finish call revert — a deployment cannot be finished into a different shape than it was started in.

3.8 Governance, upgrades and pausing

Timelock

DEFAULT_ADMIN_ROLE on the pool, the queue, the distributor and the Dashboard all land on an OpenZeppelin TimelockController whose own admin is address(0) — self-administered from creation, with no separate owner.

Two addresses drive it, both set at deploy: a proposer, which schedules operations and can also cancel them, and an executor, which runs them once the delay has passed. In practice both are the Vault Owner, usually a multisig. The emergency committee is then given CANCELLER_ROLE, which lets it drop a scheduled operation without being able to schedule or run one.

Upgrades

The pool, the queue and the strategy sit behind OssifiableProxy with the timelock as admin. Upgrading is therefore a timelock operation: propose, wait out the delay, execute. proxy__ossify() freezes an implementation permanently.

Pause matrix

Pausing is per feature, not per contract, so an incident can be contained without stopping everything:

Feature	Pause role	What stops	What keeps working
DEPOSITS_FEATURE	DEPOSITS_PAUSE_ROLE	new deposits	withdrawals, claims
MINTING_FEATURE	MINTING_PAUSE_ROLE	minting stETH and wstETH	burning, repaying
WITHDRAWALS_FEATURE	WITHDRAWALS_PAUSE_ROLE	new withdrawal requests	finalization, claims
FINALIZE_FEATURE	FINALIZE_PAUSE_ROLE	finalization	claiming already-finalized requests
SUPPLY_FEATURE / REDEEM_FEATURE	strategy pause roles	strategy entry and exit	pool-level operations

The pause roles go to the emergency committee at deployment; the Dashboard's PAUSE_BEACON_CHAIN_DEPOSITS_ROLE goes there too, so the same committee can stop validator deposits.

warning

No address holds the resume roles after deployment. The factory grants only the pause halves: DEPOSITS_RESUME_ROLE, MINTING_RESUME_ROLE, WITHDRAWALS_RESUME_ROLE, FINALIZE_RESUME_ROLE, the strategy resume roles and LOSS_SOCIALIZER_ROLE are unassigned.

A pool goes live unpaused.

Pausing is therefore fast and unpausing is not: resuming means granting the resume role and then using it, neither of which any address can do on its own. Both calls fit in one scheduleBatch operation, so the cost is a single timelock delay rather than two — plan that delay into any incident response.

Role summary

Role	Contract	Default holder
DEFAULT_ADMIN_ROLE	pool, queue, distributor, Dashboard	Timelock
FINALIZE_ROLE	WithdrawalQueue	Node Operator
MANAGER_ROLE	Distributor	Node Operator Manager
ALLOW_LIST_MANAGER_ROLE	pool	allowlist manager from config; nobody for strategy pools
pause roles	pool, queue, strategy, Dashboard	Emergency committee
resume roles, LOSS_SOCIALIZER_ROLE	pool, queue, strategy	nobody

4. Flows

4.1 Deposit

Deposit through a strategy

A strategy deposit is one call from the user's point of view. Underneath, the ETH becomes stv, the stv backs newly minted wstETH, and only that wstETH reaches the external protocol — all of it on the user's forwarder, never on the user's own address:

The two halves are independent. ETH and the wstETH amount are separate arguments, each with its own condition, so one entry point covers a fresh deposit, a position built from stv the forwarder already holds, or both at once.

The wstETH lands on the forwarder because minting always credits the caller: StvStETHPool.mintWsteth passes msg.sender down to Dashboard.mintWstETH, and the call was made by the forwarder. The same is true of the debt and of the capacity it is checked against — the position belongs to the forwarder throughout, which is why remainingMintingCapacitySharesOf(user, ethToFund) on the strategy resolves it for you.

Plain stETH does not appear in this path: mintWstETH mints and wraps in one step. An account only holds stETH if it mints through mintStethShares directly.

Whatever the shape, the ETH is then staked by the Node Operator through PDG in the ordinary way.

4.2 Minting stETH

Minting is a separate act from depositing, not a stage of it. It is available in a minting pool to any account holding stv, for any amount within that account's own capacity. It requires a fresh oracle report.

Repaying is symmetric. burnStethShares and burnWsteth reduce the debt whenever the account wants, which releases the stv that was locked against it. A strategy pool works the same way, with the calls made through the strategy so they land on the user's forwarder.

4.3 Withdrawal

The gap between request and finalization is the Consensus Layer exit queue, and it is the operator's job to watch the queue depth and decide how much to bring back. See the withdrawals guide.

Withdrawal through a strategy

A depositor whose position sits in a strategy cannot go straight to the queue: their stv is held by the forwarder and encumbered by stETH debt. Unwinding runs in three steps before the queue is involved at all, and the first of them is the only strategy-specific one.

Step 1 — leave the external position. requestExitByWsteth(wsteth, params) returns a strategy-level requestId. With Lido EarnETH the exit goes through an asynchronous redeem queue, so it completes in a second call, finalizeRequestExit(requestId); a custom adapter settles however its own protocol does.

Step 2 — repay what can be repaid. burnWsteth(amount) burns the recovered wstETH against the user's own liability, which frees the stv that was locked as its collateral. Only the part that cannot be recovered stays as debt.

Step 3 — enter the queue. requestWithdrawalFromPool(recipient, stv, stethSharesToRebalance) files the request from the forwarder, carrying both the stv and the remaining debt. The recipient is passed through as the request owner, so the ETH can land directly on the user.

Note where the calls go. Everything touching the position runs through the strategy, because the stv sits on the forwarder and only the strategy can move it. The claim does not: recipient is passed straight through as the request owner, so the user calls the queue directly at the end. Pass your own address there rather than the forwarder, or the request ends up owned by the forwarder.

From here the path is identical to the plain case: the operator finalizes, and the user claims. The remaining debt rides along with the request and is settled at finalization, so the payout is the stv value net of it — see what a claim pays out.

4.4 Rewards

Staking rewards need no distribution transaction. LazyOracle reports the stVault's value, totalAssets() rises, and every stv holder's claim rises with it. It does require somebody to keep applying reports: a stale report blocks deposits, requests, finalization, minting and forced rebalancing alike. LazyOracle.updateVaultData is permissionless, so anyone can do it, but somebody has to.

An account's claim is always its share of whatever the pool is currently worth:

$$\text{assets}(\text{account}) = \text{stv}(\text{account}) \times \frac{\text{totalAssets}}{\text{totalSupply}}$$

Nothing on the right-hand side changes when a report lands except totalAssets, so every claim moves together and in proportion. The diagram above works one through: two depositors fund 10 and 22 ETH, a report lifts the stVault to 40 ETH, and their claims become 12.5 and 27.5 ETH.

It predates the current naming, so it labels the pool "Wrapper" and the token "stvToken", and it shows the report being applied by the Node Operator when in fact updateVaultData is permissionless.

Value that arrives as tokens rather than as vault growth — DVT sidecar rewards, points after conversion — is swept out of the stVault with StakingVault.collectERC20 and distributed through the Distributor.

5. Risks

5.1 From Lido DAO

Governance capture. Vaults depend on Lido Core contracts that the DAO can upgrade. That dependency is the surface a compromised or hostile governance would have to work through: in principle an upgrade could replace those contracts with code that moves an stVault's ETH.

Three things stand in the way, which is why this stays theoretical: proposals are watched by the community, Dual Governance lets stakers block one or leave before it takes effect, and an stVault can disconnect from Lido Core altogether.

5.2 From Lido Core

Contract vulnerabilities — mitigated by audits, the Protocol Security Committee, a bug bounty, and the ability to pause VaultHub and PDG through GateSeal while a fix is voted through.

Malicious oracles — a single actor cannot move a report; a colluding quorum is still bounded by on-chain sanity checks, including the quarantine on sudden value increases.

5.3 From the stVault

Node Operator misbehaviour. The operator cannot move delegated stake, but they can be slow: delaying validator exits keeps depositors waiting in the queue. Two things bound this: their own reputation, and the fact that FINALIZE_ROLE is administered by the Timelock Controller, so governance can grant it to another address if the operator goes quiet. Depositors have no permissionless route of their own, but the pool is not locked to one finalizer. The Stakers' Emergency Guide works through what to do when this happens.

Deposit front-running — mitigated by PDG, which the Wrapper's vaults use.

Everything that applies to a plain stVault applies to the pool's vault as well — slashing, correlated slashing across an operator's vaults, forced rebalancing, bad debt. Those are not repeated here; see stVaults Technical Design.

5.4 From the Wrapper

Contract vulnerabilities — mitigated by three audits, the per-feature pause matrix, and timelocked upgrades. The asymmetry documented above applies: pausing is immediate, resuming needs a governance round-trip.

Loss socialization. An undercollateralized account cannot be closed without LOSS_SOCIALIZER_ROLE, and closing it charges the shortfall to everyone else. maxLossSocializationBP defaults to 0, which means the default configuration cannot socialize at all — safe against abuse, but it also means an undercollateralized position simply stays open.

5.5 From strategies

External protocol failure or malicious upgrade — bounded by working only in the wstETH and (W)ETH pair, LTV sanity checks, and per-user custody, which keeps one user's position from touching another's.

Strategy economics. An adapter built on leverage — none of the shipped ones are — carries liquidation risk if the stETH/ETH ratio moves, the risk that pool liquidity is insufficient to close a position, and exposure to rising borrow rates. These come with leverage itself rather than being faults in the design, and a user accepts them when choosing such a strategy.

5.6 From the Vault Owner

The timelock can move depositor ETH. Dashboard.withdraw(recipient, amount) is guarded by onlyRoleMemberOrAdmin(WITHDRAW_ROLE), which passes for the holder of that role or of its admin. WITHDRAW_ROLE has no custom admin, so its admin is DEFAULT_ADMIN_ROLE, and the factory grants that to the timelock. A scheduled operation can therefore send up to withdrawableValue() to any address: everything not locked as collateral for minted stETH.

This is the vault ownership model rather than a flaw in the Wrapper — an stVault has an owner, and the Wrapper pools depositors behind that owner. What bounds it is who holds the proposer and executor roles, which is why Non-custodial operations matters for anyone choosing a pool. The delay itself is not an exit window: it is an hour in the shipped configurations, while leaving through the withdrawal queue takes days.

6. Useful links

• Architecture overview, detailed information about environments and source code repository
• stVaults Technical Design and Architecture
• DeFi Wrapper building guides
• Building Guide Selector
• DeFi Wrapper for Node Operators
• DeFi Wrapper for Vault Owners, Curators, and Stakers
• stVaults CLI: DeFi Wrapper commands
