Pooled staking product powered by stVaults

Intro​

The DeFi Wrapper is a no-/low-code toolkit that lets builders, Node Operators, and platforms launch customized user-facing staking products powered by stVaults — with optional automated APR-boosting strategies such as leverage loops, GGV, or any custom stETH-based yield module.

This guide walks through the concepts and practical steps to launch such a product without deep protocol knowledge.

What you can build​

DeFi Wrapper supports three product archetypes:

1. Pooled delegated staking​

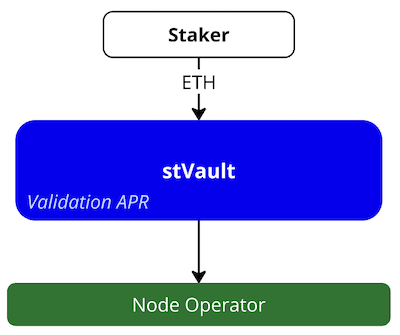

Pooled delegated staking

  • Users stake ETH with the same Node Operator.
  • Users receive APR from validator performance.

Use case: End-user staking product with conservative validation-based APR and a user-friendly interface embedded in your own traffic channel or a partner channel.

2. Pooled delegated liquid staking​

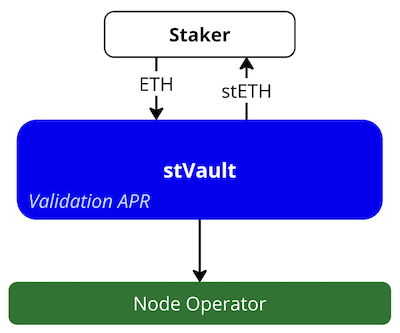

Pooled delegated liquid staking

  • Users stake ETH with the same Node Operator.
  • Users receive stETH (within the stVault’s Reserve Ratio).
  • Users receive APR from validator performance.

Use case: Institution-targeted individual (whitelisted) staking product with conservative validation-based APR and liquidity, and a simple user interface hosted on the Node Operator's web server.

3. Pooled delegated staking with boosted APR​

3.1. Leveraged staking (looping)​

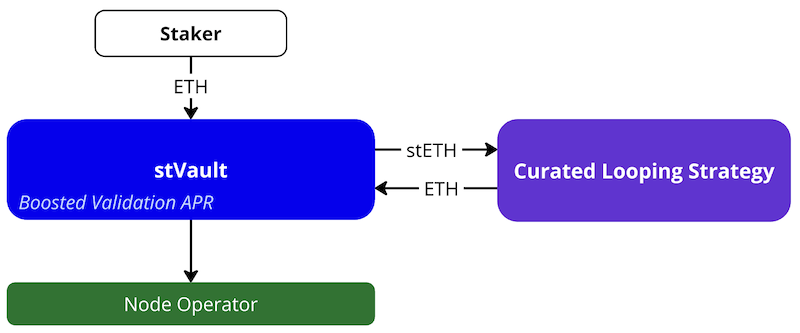

Boosted APR via leveraged staking (looping)

  • Users stake ETH with the same Node Operator.
  • stETH is minted automatically and deposited into the connected looping strategy (pre-integrated or custom).
  • ETH is borrowed against stETH and deposited back into the stVault, increasing the stVault's total value and the amount of ETH on validators.
  • Users receive boosted APR from validator performance.

Use case: End-user staking product with higher risk/yield profile through the connected curated looping strategy, increasing the amount of ETH on validators. The product lets the Node Operator attract more ETH for validation than end users deposit.

3.2. DeFi strategy (GGV or custom)​

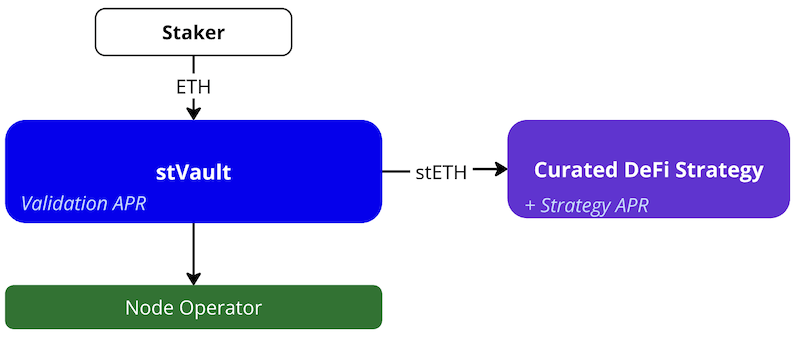

Boosted APR via DeFi strategy

  • Users stake ETH with the same Node Operator.
  • stETH is minted automatically and deposited into the connected DeFi strategy (leveraged staking, GGV, or any custom stETH-based module).
  • Users receive APR from validator performance + strategy APR.

Use case: End-user staking product with higher risk/yield profile through the connected curated DeFi strategy, making the product more attractive for end users.

Environments​

Steps​

1. Create a tokenized staking vault (pool)​

The easiest way to create a tokenized staking vault (pool) is to use the stVaults CLI. It's a command-line tool for managing both staking vaults and DeFi Wrapper pools. It deploys a pool plus its underlying staking vault via the Factory contract.

The CLI performs the deployment in two transactions to stay within the current 16M transaction gas limit.

To start:

info

The deployer must have at least 1 ETH available. This is the CONNECT_DEPOSIT required to be locked on the vault upon connection to Lido VaultHub.

The newly created staking vault is automatically connected to Lido VaultHub and placed into the default tier. Placement into non-default tiers right upon deployment is not supported.

To list the available pool types and creation commands, run:

yarn start defi-wrapper contracts factory write -h
info

For each pool type, the CLI prints the environment variables required for the UI setup. Keep this output if you plan to set up the UI.

Deployment of StvPool (pool without stETH minting)​

Run yarn start defi-wrapper contracts factory write create-pool-stv -h for the description of the required STV pool parameters.

Start the deployment like:

yarn start defi-wrapper contracts factory w create-pool-stv 0xFA97c482E2F586a35576c3aa5b56430129bF1f38 \
  --nodeOperator 0x0000000000000000000000000000000000000001 \
  --nodeOperatorManager 0x0000000000000000000000000000000000000002 \
  --nodeOperatorFeeRate 10 \
  --confirmExpiry 86400 \
  --minDelaySeconds 3600 \
  --minWithdrawalDelayTime 3600 \
  --name "Debug STV Pool" \
  --symbol STV \
  --proposer 0x0000000000000000000000000000000000000003 \
  --executor 0x0000000000000000000000000000000000000004 \
  --emergencyCommittee 0x0000000000000000000000000000000000000005 \
  --allowList false

Deployment of StvStETHPool (pool with stETH minting)​

Run yarn start defi-wrapper contracts factory write create-pool-stv-steth -h for the description of the required STV pool parameters.

Start the deployment like:

yarn start defi-wrapper contracts factory w create-pool-stv-steth 0xFA97c482E2F586a35576c3aa5b56430129bF1f38 \
  --nodeOperator 0x0000000000000000000000000000000000000001 \
  --nodeOperatorManager 0x0000000000000000000000000000000000000002 \
  --nodeOperatorFeeRate 10 \
  --confirmExpiry 86400 \
  --minDelaySeconds 3600 \
  --minWithdrawalDelayTime 3600 \
  --name "Debug STV Pool" \
  --symbol STV \
  --proposer 0x0000000000000000000000000000000000000003 \
  --executor 0x0000000000000000000000000000000000000004 \
  --emergencyCommittee 0x0000000000000000000000000000000000000005 \
  --reserveRatioGapBP 250 \
  --allowList false
warning

The minimum recommended value for reserveRatioGapBP is 250 (2.5%). It is expected to be sufficient to absorb enough of the vault's performance volatility to keep users' positions healthy in most cases.

Deployment of StvGGV (pool with GGV strategy)​

Run yarn start defi-wrapper contracts factory write create-pool-ggv -h for the description of the required GGV pool parameters.

Start the deployment like:

yarn start defi-wrapper contracts factory w create-pool-ggv 0xFA97c482E2F586a35576c3aa5b56430129bF1f38 \
  --nodeOperator 0x0000000000000000000000000000000000000001 \
  --nodeOperatorManager 0x0000000000000000000000000000000000000002 \
  --nodeOperatorFeeRate 10 \
  --confirmExpiry 86400 \
  --minDelaySeconds 3600 \
  --minWithdrawalDelayTime 3600 \
  --name "Debug GGV Pool" \
  --symbol STV \
  --proposer 0x0000000000000000000000000000000000000003 \
  --executor 0x0000000000000000000000000000000000000004 \
  --emergencyCommittee 0x0000000000000000000000000000000000000005 \
  --reserveRatioGapBP 250
info

Note that for StvGGV pools, the allowlist is not configurable: the only address allowed to deposit is the GGV strategy contract itself.

Users do not deposit via the pool directly — they supply to the strategy.

2. Create Web UI​

Follow this guide to:

  • Clone the provided repository
  • Use addresses outputted by CLI to fill up .env
  • Adjust titles, logos, texts, and color scheme to your liking
  • Deploy the dApp

3. (optional) Adjust stETH minting parameters​

By default, a newly created stVault is connected to the Default tier with a Reserve Ratio of 50%. If the Node Operator has passed identification and been granted individual tiers, the stVault can be moved from the Default tier to one of the Node Operator’s tiers to access better stETH minting conditions.

For more information about stVault tiers please see Adjust stETH minting parameters.

For pooled vaults the process of changing tier is a bit different because the Vault Owner role is assigned to the Timelock contract. The Timelock contract itself implements a two-step process for performing an on-chain action. First, the holder of its proposer role creates a proposed on-chain action; second, after a time period, the holder of the executor role executes it.

Thus, changing tier for a pooled vault is a three-step process:

  1. Holder of the Timelock's proposer role calls TimelockController.schedule to propose the OperatorGrid.changeTier call
  2. After the timelock period, the holder of the Timelock's executor role calls TimelockController.execute for the scheduled proposal
  3. Within the confirmation time window period (default 24 hours), the Node Operator calls OperatorGrid.changeTier with the same parameters
info

Confirming a tier change request requires applying a fresh report to the vault.

warning

CLI does not yet support operations with TimelockController contract and steps 1 and 2 must be performed via manual contract calls, e.g. via Etherscan.

Parameters needed for this step:

  • VaultAddress: the address of the Vault contract.
  • TierID: the ID of the tier to which the stVault will be connected.
  • RequestedShareLimit: the requested absolute stETH minting limit for the stVault, expressed in shares. This value cannot exceed the tier's stETH limit.
  • TimelockAddress: the address of the TimelockController contract (deployed together with the pool).
  • OperatorGridAddress: the address of the OperatorGrid contract (available in the stVaults contract addresses list, see #Environments).
Step 1: Schedule the tier change (Proposer)
  1. Open Etherscan and navigate to the TimelockController contract by its address.
  2. Go to the Contract tab → Write Contract.
  3. Click Connect to Web3 and connect the wallet that holds the proposer role.
  4. Find the schedule method in the list and fill out the fields:
    • target: the OperatorGrid contract address.
    • value: 0 (no ETH is sent with this call).
    • data: the ABI-encoded call to changeTier(address vault, uint256 tierId, uint256 requestedShareLimit). You can generate this using tools like ABI Encoder or cast from Foundry:
      cast calldata "changeTier(address,uint256,uint256)" <VaultAddress> <TierID> <RequestedShareLimit>
    • predecessor: 0x0000000000000000000000000000000000000000000000000000000000000000 (no predecessor required).
    • salt: 0x0000000000000000000000000000000000000000000000000000000000000000 (or any unique value if you need to differentiate identical operations).
    • delay: the delay in seconds (must be at least the minDelaySeconds configured during pool deployment).
  5. Click Write and sign the transaction in your wallet.
  6. Click View your transaction and wait for it to be executed.
  7. Note down the operation ID from the CallScheduled event in the transaction logs — you will need it to verify the operation status before execution.
Step 2: Execute the scheduled tier change (Executor)
  1. Wait for the timelock delay period to pass. You can verify the operation is ready by calling isOperationReady(operationId) on the TimelockController contract (in Read Contract tab).
  2. Open Etherscan and navigate to the TimelockController contract by its address.
  3. Go to the Contract tab → Write Contract.
  4. Click Connect to Web3 and connect the wallet that holds the executor role.
  5. Find the execute method in the list and fill out the fields with the same values used in the schedule call:
    • target: the OperatorGrid contract address.
    • value: 0.
    • payload: the same ABI-encoded call data used in step 1.
    • predecessor: 0x0000000000000000000000000000000000000000000000000000000000000000.
    • salt: the same salt value used in step 1.
  6. Click Write and sign the transaction in your wallet.
  7. Click View your transaction and wait for it to be executed.
Step 3: Confirm the tier change (Node Operator)

Within the confirmation time window period (default 24 hours) after step 2, the Node Operator must confirm the tier change:

  1. Open Etherscan and navigate to the OperatorGrid contract by its address (available in the stVaults contract addresses list, see #Environments).
  2. Since this contract is a proxy, complete the verification steps once (if not done before):
    • Go to Contract → Code.
    • Click More options.
    • Select Is this a proxy?.
    • Click Verify in the dialog.
    • Return to the contract details page.
  3. Open the Contract tab → Write as Proxy.
  4. Click Connect to Web3 and connect the wallet registered as the Node Operator.
  5. Find the changeTier method in the list and fill out the fields with the same values used in steps 1 and 2:
    • vault: the Vault contract address.
    • tierId: the tier ID.
    • requestedShareLimit: the requested share limit.
  6. Click Write and sign the transaction in your wallet.
  7. Click View your transaction and wait for it to be executed.

4. Deposit ETH to validators​

Supplying ETH to the stVault increases its balance. The Node Operator can then deposit ETH from this balance into validators.

The Predeposit Guarantee (PDG) contract, as part of the stVaults platform, helps prevent deposit frontrunning caused by the vulnerabilities described in LIP-5. PDG secures the Vault Owner’s ETH deposits to validators from being front-run by the Node Operator.

warning

According to the updated V3 rollout plan, the Predeposit Guarantee (PDG) contract is now paused on the Hoodi Testnet and will also be paused on Mainnet during the soft-launch in late December 2025.

Phase 2 (Full Launch Mode), including the fully functional PDG, is expected in late January 2026.

One of the key benefits of using PDG is the avoidance of commingling: it keeps the finances of the Vault Owner and the Node Operator strictly separated.

PDG enables three main use cases:

  • Full-cycle proof of validators. Enables a non-custodial deposit mechanism by using guarantee ETH as collateral. Follow the main guide.
  • PDG shortcut. Allows skipping the pre-deposit steps and depositing directly to a validator without using PDG initially. The validator can later be associated with the vault by proving it through PDG. This path is applicable when there is unconditional trust between the Node Operator and the Vault Owner. Follow the shortcut guide.
  • Adding existing validators. Lets you connect an existing validator from external staking infrastructure to an stVault as an advanced integration use case.

Read more: Technical details; GitHub Repository.

5. Monitor stVault health and rebalance​

The key stVault metrics that the Vault Owner should monitor and control are:

  • Utilization ratio — the share of the stETH minting capacity currently used by the Vault Owner. Learn more
  • Health Factor — a metric that reflects the economic state of the vault. It shows how the stETH liability is collateralized by the Total Value. A Health Factor of 100% corresponds to the Forced Rebalance Threshold, meaning that if the Health Factor falls below 100%, the stVault becomes subject to forced rebalancing. Learn more

Read more:

The Health Factor metric may decrease as a result of validator underperformance, penalties, or a slashing event.

If this happens, there are three main options available:

  • Supply ETH to increase Total Value.
  • Repay stETH to reduce stETH liability.
  • Rebalance ETH (optionally combined with a supply in a single transaction).

Rebalancing involves transferring available ETH from the stVault balance to Lido Core, receiving stETH at a 1:1 ratio, and repaying it back to the stVault. This reduces stETH liability and thereby increases the Health Factor.

Rebalancing is performed in one transaction.

The amount of ETH required for rebalancing to bring the Utilization Ratio to 100% depends on the current Health Factor and Reserve Ratio. It can be pre-calculated manually using the formula, or via the built-in methods.

by Formula

ETH for rebalance = (stETH Liability − (1 − Reserve Ratio) × Total Value) / Reserve Ratio

by Command-line Interface

See the CLI documentation for rebalance commands.

using Etherscan UI
  1. Open Etherscan and navigate to the VaultHub contract by its address (available in the stVaults contract addresses list, see #Environments).
  2. Since this contract is a proxy, complete the verification steps once (if not done before):
    • Go to Contract → Code.
    • Click More options.
    • Select Is this a proxy?.
    • Click Verify in the dialog.
    • Return to the contract details page.
  3. Open the Contract tab → Read as Proxy.
  4. Click Connect to Web3 and connect your wallet in the dialog window.
  5. Find the method healthShortfallShares in the list, fill out the input with the vault contract address, and click Query.
  6. Receive the result right under the submit button.
