Architecture

From Core Vaults to Meta Vaults

Source snapshot for this update: flexible-vaults@69bbaf1. This identifies the described code, not audit coverage or the configuration of every deployment. See Deployments for deployed addresses and Audits for review scopes.

Mellow Core Vaults​

Abstract​

Meta Vaults are built on top of the Core Vaults architecture and inherit its fundamental design principles, execution model, and security guarantees. Rather than introducing a separate vault system, Meta Vaults utilize the existing Core Vault framework to enable aggregation and orchestration of multiple strategies under a single vault abstraction.

This means that all core mechanics, including liquidity handling, accounting, permissioning, and execution constraints, follow the same proven architectural patterns, while Meta-Vault-specific logic focuses on coordinating allocations across multiple onchain destinations.

Vaults Architecture​

Core Vaults are built around a modular architecture that orchestrates interactions across both DeFi protocols and centralized exchanges. It enables trustless execution of complex, institutional-grade strategies while maintaining full composability and transparency.

No matter how diverse or sophisticated the underlying strategies become, the vault framework remains stable and predictable - providing a unified, programmable setup for managing assets, risks, and logic.

The result is infrastructure that supports scalable, curated access to onchain yield - secure, standardized, and ready for real users.

Core Vaults Features & Functionality​

  • Deposits & Withdrawals for the Liquidity Providers
  • Valuation Oracle
  • Strategy performance analytics for Liquidity Providers
  • Fee management
  • Vault management tools & Curation UI
  • Reward distribution engine
  • Receipt token distribution infrastructure
  • Smart contract safeguards
  • Granular role-based control
  • Access to external apps and protocols

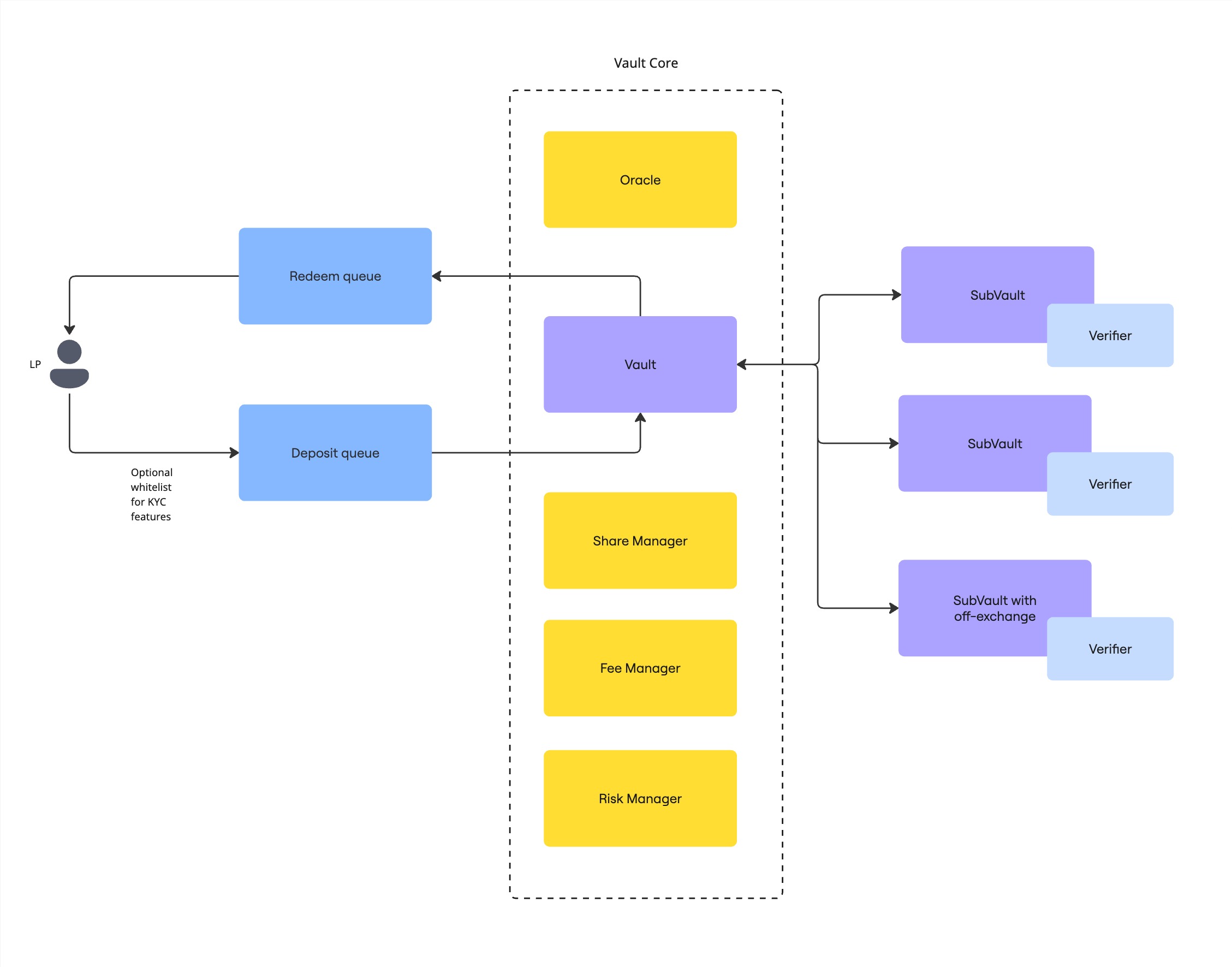

Vault system architecture overview​

Vault system architecture overview

Deposit Queue​

Manages user deposits through a time-buffered queuing system. This delay helps prevent front-running and price manipulation by ensuring deposits are not executed based on stale or externally influenced oracle price data.

The deposit queue is also responsible for issuing receipt tokens.

Technical details​

Deposit flow:

  1. Step 1: User Deposits
    • A user submits a deposit request via deposit(assets, referral, merkleProof).
    • Deposits require canDeposit when hasWhitelist is set, and a valid Merkle proof when a root is configured. Both checks apply when both mechanisms are enabled.
    • A previous request is claimed automatically when its processed fee-adjusted price checkpoint is positive. Otherwise, the new deposit reverts with PendingRequestExists().
    • The deposited amount and timestamp are stored in the DepositQueue contract.
  2. Step 2: Oracle Report
    • Oracle report is propagated via the handleReport(priceD18, timestamp) method.
    • The queue validates the report:
      • It must be called by the Vault.
      • The provided timestamp must be in the past (derived as report.timestamp - depositInterval).
      • priceD18 must be non-zero.
    • The queue handles deposit requests that are pending for at least depositInterval seconds (the interval is specified in the oracle's security parameters).
    • The contract stores a (timestamp, reducedByDepositFeePriceD18) pair in the prices array. This value is used to convert accumulated assets into shares based on the user's request timestamp. The reducedByDepositFeePriceD18 is derived by applying the deposit fee to the actual reported priceD18.
    • Net user shares are allocated for later claims. Fee shares are minted to the fee recipient; assets move to the vault, risk accounting is updated, and the deposit hook is called.
    • Emits the ReportHandled(uint224 priceD18, uint32 timestamp) event.
  3. Step 3: User Claims

    • A user calls claim(account) (or claimShares(account) in the Vault) to mint and receive previously allocated shares.

    • The number of shares is computed as:

      uint256 shares = (request.assets * reducedByDepositFeePriceD18) / 1e18;

    • Shares are minted to the user via mintAllocatedShares.

Assumptions & Properties​

  1. Single Active Request

    Each user may have at most one outstanding deposit request. The next deposit claims it automatically only when its processed fee-adjusted price checkpoint is positive; otherwise it reverts with PendingRequestExists(). The allowed 100% deposit fee creates a zero checkpoint, leaving the processed request unclaimable and uncancelable and blocking further deposits from that account.

  2. Delayed Execution

    Deposit processing requires an Oracle report submitted after a configured depositInterval.

  3. Lazy Claiming

    Deposits are converted into shares during oracle processing, but users must call the claim function (in ShareModule, ShareManager or in each DepositQueue separately) to receive them. However, even without explicitly claiming, the user's full share balance - including all claimable shares across all deposit queues - is accurately reflected in shareManager.sharesOf(user).

  4. Whitelist Enforcement

    Deposits may require Merkle proof for depositor whitelisting.

Redeem Queue​

Serving as the counterpart to the Deposit Queue, it manages withdrawal requests.

Redemptions are processed in two phases:

  1. Oracle pricing - reports are processed in batches, with each batch assigned a specific conversion price derived from its corresponding Oracle report.
  2. Liquidity settlement - Vault liquidity is pulled asynchronously, allowing the curator to finalize withdrawals and perform asset swaps before processing user redemption requests.

This separation allows asynchronous liquidity management, gas efficiency, and protection against griefing. Unlike deposit requests, withdrawal requests in the Redeem Queue cannot be canceled to prevent yield griefing.

Technical details​

Redeem flow:

  1. Step 1: User redeems
    • A redeem request locks shares in the ShareManager. Unless the caller is the fee recipient, the fee is burned from the locked shares and minted to that recipient. The request records net shares.
    • The vault curator monitors and manages liquidity across connected Subvaults, pulling funds and swapping assets as needed to fulfill redemption requests.
  2. Step 2: Oracle report
    • Valid and non-suspicious Oracle report arrives.
    • The report burns the batch's net locked shares. Any account can then invoke handleBatches(n) on the RedeemQueue; this method is permissionless.
    • This triggers the movement of required assets from the vault (and associated Subvaults) to process redemption requests.
  3. Step 3: User claims
    • Users call claim(receiver, timestamps) to withdraw assets.

Assumptions & Properties​

  1. Non-Cancellable Requests

    Prevents griefing where a user requests redemption, causing curator to pull liquidity, then cancels.

  2. Time-Sensitive Request Handling

    Oracle reports can only process a redemption request if at least redeemInterval seconds have passed since the request was submitted - i.e., report.timestamp must be greater than or equal to request.timestamp + redeemInterval.

  3. Asynchronous Fulfillment

    Liquidity can be managed independently of oracle report submission.

Signature Deposit and Redeem Queues​

Signature Queues allow deposits and redemptions to be processed instantly, bypassing the standard time-buffered flow. That happens when a trusted consensus group issues offchain signed approvals.

Key Features:

  • Instant execution without waiting for Oracle price reports
  • Nonce-based signature protection to prevent replay attacks
  • EIP 712 and EIP 1271 compatible signed orders
  • Oracle price validation enforced onchain
  • No pending requests or claims; nonces and configuration remain stored
  • Fee bypass: No Deposit Fee or Redeem Fee is charged for actions via this queue

Technical details​

Signature Queue flow:

  1. Step 1: Offchain signing
    • Offchain consensus actors (operators, curators, admins) generate signed Order messages.
  2. Step 2: Onchain execution
    • A user submits this order to the SignatureQueue contract for execution.
    • The queue:
      • Verifies the order signature
      • Validates nonce, queue address, asset match, deadline, and caller
      • Computes the implied asset and share price and checks it against the vault's oracle
    • If all checks pass, the order is executed atomically.

Assumptions & Properties​

  • Only trusted offchain actors (consensus group) are authorized to sign orders.
  • Price quotes must be valid and non-suspicious.
  • Users cannot reuse old signatures due to nonce tracking.
  • Orders must be executed before deadline.

Synchronous Queues​

  • SyncDepositQueue mints shares immediately using a fresh, non-suspicious report, with a price penalty, deposit fee, and vault-limit checks.
  • SyncRedeemQueue burns shares and pays assets in one transaction, subject to report freshness, penalty, redeem fee, available liquidity, and a share-denominated leaky-bucket limit.

Vault​

The Vault contract serves as the central entry point into the Core Vault system. It is configured by four internal modules:

  • BaseModule: Implements different auxiliary interfaces such as onERC721Received, getStorageAt and receive callback
  • ACLModule: Role-based access control for system components
  • ShareModule: Management of shares, fees, deposit and redeem queues lifecycle, Oracle report handling
  • VaultModule: Subvaults management, pushing and pulling of assets in Subvaults

Subvault​

The Subvault contract is a vault component designed to manage delegated asset strategies, acting as a controlled execution unit within a system. Like the Vault contract, it is configured by modules:

  • BaseModule: Implements different auxiliary interfaces such as onERC721Received, getStorageAt and receive callback.
  • SubvaultModule: Represents an isolated child vault within a modular vault system, responsible for securely holding and releasing assets upon authenticated requests.
  • VerifierModule: is an abstract extension of the Base Module designed to provide standardized access to a Verifier contract.
  • CallModule: Enables arbitrary low-level calls to external contracts (used by curator of the vault), and verification through a verifier module.

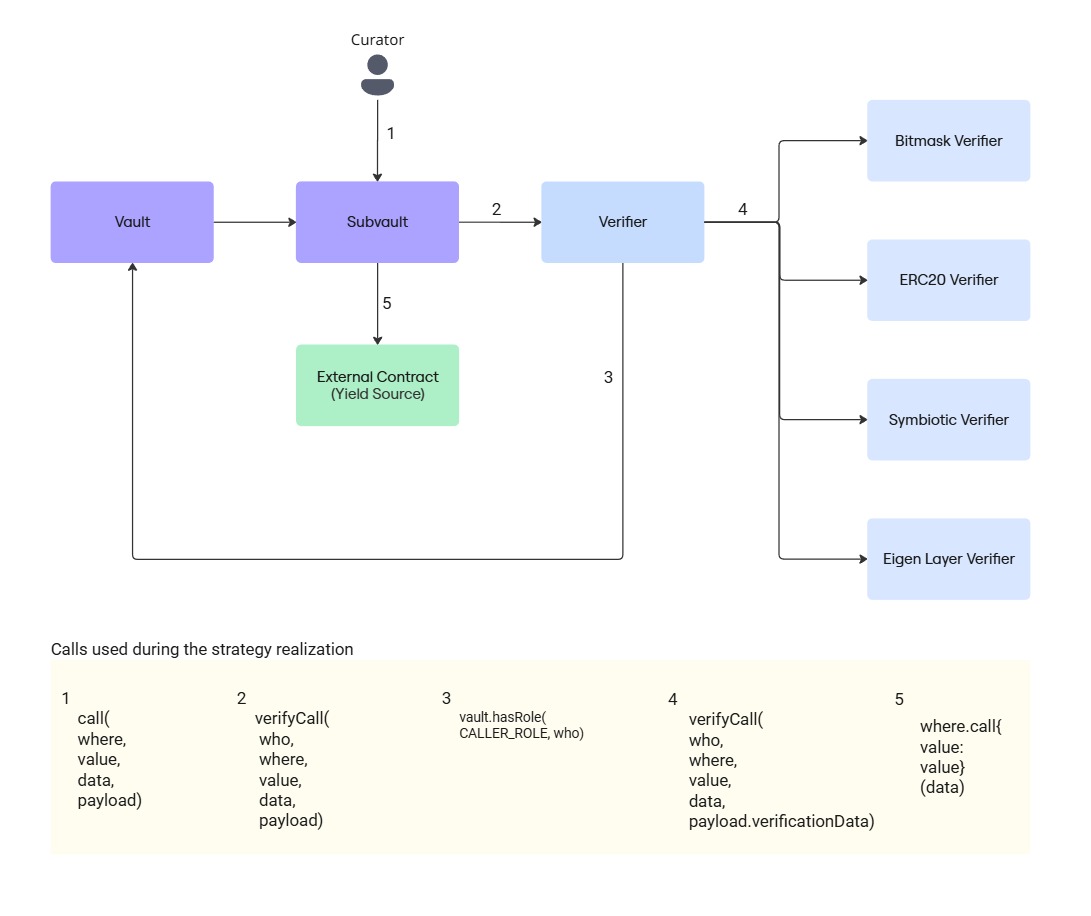

Verifier​

Each Subvault is paired with a Verifier contract, which validates function calls and ensures only pre-approved actions from valid actors are permitted across vault-connected modules.

While each Subvault is expected to have its own dedicated Verifier contract, it is still possible for the same Verifier to be shared across multiple Subvaults.

Technical details​

Verifier allows multiple types of verification:

  • ONCHAIN_COMPACT: Checks CompactCall (who | where | selector) hash against internal admin controlled set
  • MERKLE_COMPACT: Verifies Merkle proof of CompactCall (who | where | selector) hash
  • MERKLE_EXTENDED: Verifies Merkle proof of ExtendedCall (who | where | value | callData) hash
  • CUSTOM_VERIFIER: Checks CALLER_ROLE and a Merkle proof that authenticates the verifier address and its data, then delegates the final call check

The following parameters are saved in the state of the Verifier contract:

  • compactCallHashes that defines all allowed calls for ONCHAIN_COMPACT verification type
  • compactCalls is an optional mapping for reverse lookup of call metadata by hash
  • merkleRoot that defines all allowed calls for MERKLE_COMPACT, MERKLE_EXTENDED and CUSTOM_VERIFIER

Oracle​

The Oracle contract handles secure and configurable price reporting for supported assets. Closely integrated with the ShareModule, it provides price validation, deviation monitoring, and time-restricted report submissions.

Trusted role holders supply prices within the configured timing and deviation rules. Other components use these reports for share conversion and limit accounting.

Key considerations:

  • Only authorized roles can submit price updates
  • Suspicious reports require explicit approval before acceptance
  • Price validation is performed locally without relying on external oracle feeds
  • Reports with a non-zero previous price are checked against absolute and relative deviation limits; role holders remain trusted for price accuracy

Technical details​

Oracle Configurable Security Parameters:

  • Absolute Deviation: Hard limits on price delta in price units
  • Relative Deviation: Tolerance as a percentage (e.g., 5% = 0.05e18)
  • Timeout: Minimum time between valid reports (ignored if the previous report is suspicious)
  • depositInterval: Minimum age required for a deposit to be processed
  • redeemInterval: Same, but for redemptions

Reporting flow:

  1. Step 1: Report is submitted:
    • Each asset is checked for support
    • The previous report state is evaluated:
      • If timeout has not passed, and the report is not suspicious -> revert TooEarly(uint256 timestamp, uint256 minTimestamp)
    • Price is compared against previous:
      • If the stored previous price is zero, including before the first report, the new report is suspicious without deviation checks.
      • With a non-zero previous price, either maximum deviation exceeded -> revert InvalidPrice(uint256 priceD18).
      • Within maximum limits, a previous suspicious report or either suspicious threshold exceeded -> mark suspicious.
    • Only a non-suspicious report propagates immediately. Suspicious reports require ACCEPT_REPORT_ROLE approval.
  2. Step 2: Accepted report propagation:
    • Triggers vault.handleReport(...), processing deposit requests and pending redeem requests
    • ReportsSubmitted(Report[] reports) is emitted once for the submitted batch, including suspicious reports.

Validation Logic:

When the stored previous price is non-zero, reports are validated by:

  • Calculating absolute deviation (maxAbsolute)
  • Calculating relative deviation (maxRelative)
  • Comparing against max and suspicious thresholds

With a non-zero previous price, a report is:

  • Rejected if either deviation exceeds max
  • Accepted but marked as suspicious if above the suspicious threshold, flagging the report
  • Normal only if the previous report is not suspicious and neither suspicious threshold is exceeded; a zero previous price instead makes the new report suspicious without deviation checks

Used by:

  • Signature queues call validatePrice.
  • RiskManager, synchronous queues, and OracleSubmitter read getReport.
  • Asynchronous queues receive prices through vault.handleReport.

Oracle and Curator Utilities​

  • OracleSubmitter adds report roles, history, and a Chainlink-compatible share-price feed around the vault Oracle.
  • PermissionedChainlinkOracle exposes an owner-supplied price within immutable bounds. It does not aggregate independent observations.
  • MellowAccountV1 lets an owner batch contract calls through an account. Targets enforce permissions against that account.

Share Manager​

The Share Manager is an upgradeable contract responsible for managing vault share issuance, allocation, whitelisting, permissions, and lockups within a modular vault system.

Key responsibilities include:

  • Tracking total and active share supply
  • Enforcing a global unlock timestamp for burns, locks, and transfers
  • Verifying whitelist status and transfer permissions
  • Enforcing mint, burn, and transfer pauses
  • Handling share allocation and claims through queues
  • Whitelisting for implementing KYC and compliance features

Technical details​

Share Manager relies on a compact bitmask (flags) for enabling and disabling features and supports configurable per account permissions. Controlled via ShareManagerFlagLibrary:

  • hasMintPause
  • hasBurnPause
  • hasTransferPause
  • hasWhitelist
  • hasTransferWhitelist
  • globalLockup

globalLockup is a Unix timestamp checked by updateChecks for burns, locks, and transfers. It does not restrict minting. There is no per-account lockup.

Share Manager operates under the control of defined roles:

  • SET_FLAGS_ROLE: Allows changing global flags (e.g., mint pause, whitelist enforcement).
  • SET_ACCOUNT_INFO_ROLE: Grants permission to set per account configuration.
  • SET_WHITELIST_MERKLE_ROOT_ROLE: Grants permission to set new whitelist merkle root.

Fee Manager​

The Fee Manager oversees the calculation and management of multiple fee types within the vault system. Currently, it supports four fee acquiring methods:

  • Deposit Fee: Charged on asset deposits
  • Redeem Fee: Applied on share redemptions
  • Performance Fee: Based on decreases in share price (assets x price = shares)
  • Protocol Fee: Time-based fee accrued per vault

All fees are paid in vault shares rather than the underlying assets.

Admin can update recipient and fee parameters.

Technical details​

Fee Manager will require identifying the base asset of the vault. setBaseAsset: Called once per vault to register its performance reference token.

updateState(asset, price): Vaults call this to refresh timestamp and minimum price.

Performance and Protocol fees are activated by a fresh Oracle report on the base asset.

Fee Calculation Logic:​

  • Deposit fee - applied linearly and calculated as shares * depositFeeD6 / 1e6, deducted during the oracle report handling process.
  • Redeem fee - applied linearly and calculated as shares * redeemFeeD6 / 1e6, deducted when shares are requested for redemption.
  • Performance fee - due to the use of a non standard pricing mechanism (price = shares / assets), delegation yield will result in a lower reported price by the oracle; if priceD18 falls below minPriceD18, the fee is charged as (minPriceD18 - priceD18) * performanceFeeD6 * totalShares / (priceD18 * 1e6) to capture the implied yield.
  • Protocol fee - applies when timestamps[vault] != 0 and block.timestamp > timestamps[vault]. It is calculated as totalShares * protocolFee * (block.timestamp - timestamps[vault]) / (365 * 24 * 3600 * 1e6), proportional to both share supply and elapsed time since the last timestamp update.

Risk Manager​

The Risk Manager contract defines and enforces asset deposit limits across the Vault and its associated Subvaults. It maintains internal accounting of balances, limits, and approved assets for each Subvault.

This module is responsible for:

  • Setting and enforcing share limits (practically representing approximate deposit limits) at both vault and Subvault levels
  • Permitting or restricting specific assets to be pulled into the Subvaults
  • Tracking pending balances for deposits that are not yet finalized
  • Validating limits using Oracle price reports

Technical details​

  • Vault Limit: Global cap across all assets managed by the vault (in shares).
  • Subvault Limit: Individual cap per Subvault, enforced independently (in shares).
  • Allowed Assets: Only explicitly allowlisted assets are permitted for push and pull operations in a given Subvault.
  • Pending Assets: Temporarily tracked assets, e.g., during deposit queueing
  • Shares Conversion: All balances are internally tracked in shares, calculated using latest report in the Oracle contract.

All vault and Subvault level limits are treated as approximate and computed using the most recent Oracle report available at the time of the state update (on Subvault pull or push event or Deposit or Redeem operations).

If actual balances deviate significantly from the stored balance values due to oracle drift, delayed execution, or protocol side changes, a trusted actor can apply corrections to mitigate the difference:

  • modifyVaultBalance for the Vault, or
  • modifySubvaultBalance for individual Subvaults.

Since the system is expected to hold only correlated assets, such manual adjustments are assumed to be rare under normal operating conditions.

Access Control​

Granular Access Control (MellowACL) is a lightweight yet extensible layer built on an OpenZeppelin contract. It adds automatic tracking and enumeration of active roles to enhance governance transparency and enable dynamic role management.

Responsibilities include:

  • Granting and revoking access control roles to addresses
  • Maintaining a dedicated set of all active (assigned) roles
  • Providing enumerable functions for external auditing of granted roles
  • Emitting events when roles are assigned or fully revoked

Supported protocols and integrations​

Core Vaults architecture supports integration with a wide range of apps, including both DeFi protocols and centralized exchanges. Most of the protocol integrations can work out of the box. Below is a brief example of potential connections to Subvaults.

Major protocols:​

  • Aave (leverage & supply side LPing)
  • Gearbox (leverage & supply side LPing)
  • Curve, Uniswap (DEX liquidity provisioning)
  • Cowswap (limit orders)
  • Symbiotic, EigenLayer (provide liquidity for restaking rewards)
  • Pendle (splitting and selling future yield or holding for boosted returns)
  • Morpho (leverage & supply side LPing)
  • Euler (leverage & supply side LPing)
  • Fluid (leverage & supply side LPing)
  • Hyperliquid

CEXes via custodial off exchange solutions (Copper and Ceffu)​

  • Deribit
  • ByBit
  • Binance
  • Most of tier 1 and 2 CEXes

Case Study​

Prerequisites:

The flow occurs within a Core Vault under the following conditions:

  1. Two Subvaults representing different yield sources: a delta neutral trading strategy and restaking
  2. Liquidity is evenly allocated 50%/50% between the Subvaults
  3. 1% management fee and 15% performance fee
  4. Annual Percentage Rate (APR) of 10%

Initial Action:

A Liquidity Provider (LP) deposits 1,000,000 USDC into the Mellow Core Vault.

Process Flow:

  1. Deposits are processed and transferred into the vault after passing through the time-buffered Deposit Queue.
  2. The LP receives receipt tokens representing the 1,000,000 USDC position.
  3. The LP can use these receipt tokens as collateral in various DeFi protocols to generate additional yield, such as leverage looping on Gearbox.
  4. Liquidity is allocated from the Vault to the Subvaults according to the limit-based rules.
  5. 50% of unallocated funds are pulled into a Subvault 1 by a Curator.
  6. 50% of unallocated funds are pulled into a Subvault 2 by a Curator.
  7. The Curator allocates funds from Subvault 1 to the delta neutral strategy through integrated centralized exchanges.
  8. Funds from Subvault 2 are allocated to the restaking strategy via Symbiotic.
  9. After 12 months, the LP requests a full withdrawal.
  10. Throughout the holding period, Protocol and Performance Fees are automatically accrued with each Oracle update, resulting in a management fee of 10,000 USDC and a performance fee of 15,000 USDC - both paid in vault receipt tokens.
  11. The withdrawal request is queued and detected onchain.
  12. At the end of the withdrawal interval, the Curator transfers 1,075,000 USDC (principal plus accrued yield) from the Subvaults back to the Core Vault Contract.
  13. The LP redeems the full amount directly from the Redeem Queue.

Process Flow for Curator Allocation:

Process flow for curator allocation

  1. Curator asks Admin to add 2 Subvaults with correct verifier configs:

    • First one allowing liquidity transfer into a Copper or Ceffu account
    • Second one allowing deposits, withdrawals, withdrawal claims and reward claims & swaps from Symbiotic

  2. Curator pushes unallocated funds: Vault.pushAssets(subvault, USDC, 5e11) (500,000 USDC in its six-decimal raw units).

  3. Allocates assets in Subvault 1 (Delta Neutral strategy on ByBit via Copper ClearLoop).

    • In UI, Curator clicks New Call -> sets target to Copper Subvault -> selects USDC asset and Bybit ClearLoop as destination.

    • Generate VerificationPayload via Mellow API.

    • Executes call:

      subvault1.call(
        asset,                          // address of the asset (USDC) to be sent to the Copper account
        0,                              // eth value
        abi.encodeCall(
          IERC20.transfer,               // transfer call encoding
          (copperAccountAddress, 5e11)  // (recipient, amount)
        ),
        verificationPayload             // extra data for Verifier contract
      )

    • Inside Bybit UI, strategy is realized by the Curator, with settlements occurring every few hours in the Copper Clearloop.

  4. Allocate to Subvault 2 (Symbiotic Restaking).

    • Pushes unallocated funds to the second Subvault: vault.pushAssets(subvault2, asset, 5e11).

    • Clicks New Call -> target = Restaking Subvault -> calls deposit(subvault, 5e11).

    • Gets the verification result and VerificationPayload from the Mellow API for this call.

    • Executes call:

      subvault2.call(
        symbioticVault,            // address of the symbiotic vault
        0,                         // eth value
        abi.encodeCall(
          ISymbioticVault.deposit, // deposit call encoding
          (subvault, 5e11)         // (onBehalfOf, amount)
        ),
        verificationPayload        // extra data for Verifier contract
      )

  5. Curator regularly claims rewards from Symbiotic Restaking and swaps them into assets before depositing them using subvault2.call.

  6. Curator monitors Performance & Exit upon user request by repeating New Call steps to withdraw according to net returns.
